Tubing and Sleeving


Your Source for Tubing and Sleeving Products in Dallas, TX

Your electrical components will remain sturdy and reliable when you turn to M3 Associates, Inc. As a leading supplier of Sumitomo Sumitube heat-shrink tubing and Grayline PVC tubing, we make it easy to fulfill your wiring and cabling needs. With our extensive selection of tubing and sleeving products, competitive rates, and client-first approach to service, completing your projects has never been easier.

Today’s electronics are more advanced and sophisticated than before. Without the right components shielding your cables and wires, you will find it very difficult to keep your critical equipment running as designed. By ordering our wire and cable tubing, you take smart steps towards producing strong, sturdy, and reliable electronic devices.

It all begins here. Our experienced and knowledgeable team can work with you to find the heat shrink tubing and cabling parts you need for your projects. Whether you are prototyping a new device or need replacements for a current installation, you can count on us to provide the accessories and components that will turn your ideas into a reality. Many orders can be processed and shipped in 24 hours.

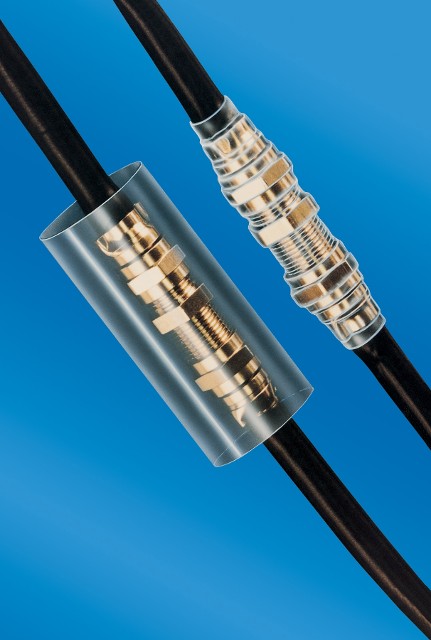

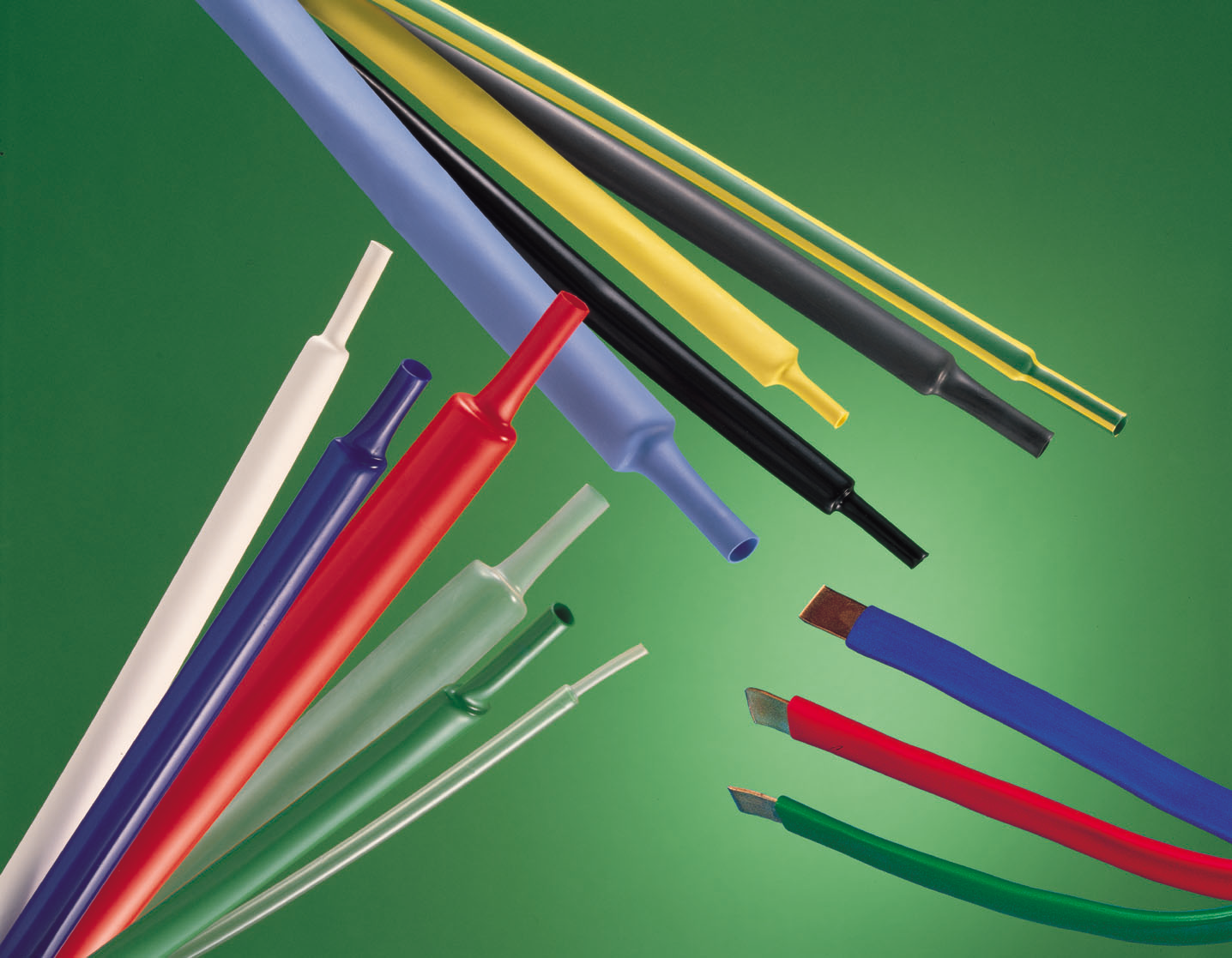

Heat Shrink Tubing

Our extensive Sumitomo Sumitube catalog includes heat shrink tubing in different sizes and colors. They work well in a variety of applications across many industries, including the military and the commercial sectors. These are also ideal for automotive and telecommunications products. Additionally, we can print new tubing, cut it, and apply barcodes for you. If you prefer to cut the tubing, we offer SumiMark Marking products.

Expanded Tubing and Sleeving

Expand your capabilities with our selection of expanded tubing and sleeving products. Our catalog includes wire and cable sleeves that meet commercial, UL, CSA, and mil-spec standards. On top of that, we offer parts in different materials, including silicone rubber-coated fiberglass, Viton, Kevlar, PVC, and more.

We’re here to fulfill your tubing and sleeving needs. Contact us to learn more about our products and to place an order.

Tubing Materials Tubing Materials with Red Background Tubing Materials with Red Background
Colored Wires In Plastic Coil

Tubes with Lock

Line of Products

Specifications

  • SAE AS23053
  • Mil-I-631
  • PVC105
  • Mil-I-7444
  • M6855
  • M81914
  • MS3117
  • M3190
  • M85049

MIL SPEC NO. PART NO. Supplied ID Description Data Sheet Price/Lead Time
M23053/5-201-C A2 3/64 Clear 0.0470 2 to 1 Polyolefin A2 Data Sheet Send E-Mail
M23053/5-202-C A2 1/16 Clear 0.0630 2 to 1 Polyolefin A2 Data Sheet Send E-Mail
M23053/5-203-C A2 3/32 Clear 0.0937 2 to 1 Polyolefin A2 Data Sheet Send E-Mail
M23053/5-204-C A2 1/8 Clear 0.1250 2 to 1 Polyolefin A2 Data Sheet Send E-Mail
M23053/5-205-C A2 3/16 Clear 0.1875 2 to 1 Polyolefin A2 Data Sheet Send E-Mail
M23053/5-206-C A2 1/4 Clear 0.2500 2 to 1 Polyolefin A2 Data Sheet Send E-Mail
M23053/5-207-C A2 3/8 Clear 0.3750 2 to 1 Polyolefin A2 Data Sheet Send E-Mail
M23053/5-208-C A2 1/2 Clear 0.5000 2 to 1 Polyolefin A2 Data Sheet Send E-Mail
M23053/5-209-C A2 3/4 Clear 0.7500 2 to 1 Polyolefin A2 Data Sheet Send E-Mail
M23053/5-210-C A2 1" Clear 1.0000 2 to 1 Polyolefin A2 Data Sheet Send E-Mail
M23053/5-211-C A2 1 1/2 Clear 1.5000 2 to 1 Polyolefin A2 Data Sheet Send E-Mail
M23053/5-212-C A2 2" Clear 2.0000 2 to 1 Polyolefin A2 Data Sheet Send E-Mail
M23053/5-213-C A2 3" Clear 3.0000 2 to 1 Polyolefin A2 Data Sheet Send E-Mail
M23053/5-214-C A2 4" Clear 4.0000 2 to 1 Polyolefin A2 Data Sheet Send E-Mail

M23053/5-101-0 M23053/5-301-0 B2 3/64 Black 0.0470 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-102-0 M23053/5-302-0 B2 1/16 Black 0.0630 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-103-0 M23053/5-303-0 B2 3/32 Black 0.0937 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-104-0 M23053/5-304-0 B2 1/8 Black 0.1250 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-105-0 M23053/5-305-0 B2 3/16 Black 0.1875 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-106-0 M23053/5-306-0 B2 1/4 Black 0.2500 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-107-0 M23053/5-307-0 B2 3/8 Black 0.3750 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-108-0 M23053/5-308-0 B2 1/2 Black 0.5000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-109-0 M23053/5-309-0 B2 3/4 Black 0.7500 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-110-0 M23053/5-310-0 B2 1" Black 1.0000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-111-0 M23053/5-311-0 B2 1 1/2" Black 1.5000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-112-0 M23053/5-312-0 B2 2" Black 2.0000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-113-0 M23053/5-313-0 B2 3" Black 3.0000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-114-0 M23053/5-314-0 B2 4" Black 4.0000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail

M23053/5-101-2 M23053/5-301-2 B2 3/64 Red 0.0470 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-102-2 M23053/5-302-2 B2 1/16 Red 0.0630 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-103-2 M23053/5-303-2 B2 3/32 Red 0.0937 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-104-2 M23053/5-304-2 B2 1/8 Red 0.1250 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-105-2 M23053/5-305-2 B2 3/16 Red 0.1875 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-106-2 M23053/5-306-2 B2 1/4 Red 0.2500 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-107-2 M23053/5-307-2 B2 3/8 Red 0.3750 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-108-2 M23053/5-308-2 B2 1/2 Red 0.5000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-109-2 M23053/5-309-2 B2 3/4 Red 0.7500 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-110-2 M23053/5-310-2 B2 1" Red 1.0000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-111-2 M23053/5-311-2 B2 1 1/2" Red 1.5000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-112-2 M23053/5-312-2 B2 2" Red 2.0000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-113-2 M23053/5-313-2 B2 3" Red 3.0000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-114-2 M23053/5-314-2 B2 4" Red 4.0000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail

M23053/5-101-4 M23053/5-301-4 B2 3/64 Yellow 0.0470 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-102-4 M23053/5-302-4 B2 1/16 Yellow 0.0630 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-103-4 M23053/5-303-4 B2 3/32 Yellow 0.0937 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-104-4 M23053/5-304-4 B2 1/8 Yellow 0.1250 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-105-4 M23053/5-305-4 B2 3/16 Yellow 0.1875 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-106-4 M23053/5-306-4 B2 1/4 Yellow 0.2500 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-107-4 M23053/5-307-4 B2 3/8 Yellow 0.3750 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-108-4 M23053/5-308-4 B2 1/2 Yellow 0.5000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-109-4 M23053/5-309-4 B2 3/4 Yellow 0.7500 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-110-4 M23053/5-310-4 B2 1" Yellow 1.0000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-111-4 M23053/5-311-4 B2 1 1/2" Yellow 1.5000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-112-4 M23053/5-312-4 B2 2" Yellow 2.0000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-113-4 M23053/5-313-4 B2 3" Yellow 3.0000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-114-4 M23053/5-314-4 B2 4" Yellow 4.0000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail

M23053/5-101-9
M23053/5-301-9 B2 3/64 White 0.0470 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-102-9 M23053/5-302-9 B2 1/16 White 0.0630 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-103-9 M23053/5-303-9 B2 3/32 White 0.0937 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-104-9 M23053/5-304-9 B2 1/8 White 0.1250 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-105-9 M23053/5-305-9 B2 3/16 White 0.1875 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-106-9 M23053/5-306-9 B2 1/4 White 0.2500 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-107-9 M23053/5-307-9 B2 3/8 White 0.3750 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-108-0 M23053/5-308-0 B2 1/2 White 0.5000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-109-0 M23053/5-309-0 B2 3/4 White 0.7500 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-110-0 M23053/5-310-0 B2 1" White 1.0000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-111-0 M23053/5-311-0 B2 1 1/2" White 1.5000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-112-0 M23053/5-312-0 B2 2" White 2.0000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-113-0 M23053/5-313-0 B2 3" White 3.0000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail
M23053/5-114-0 M23053/5-314-0 B2 4" White 4.0000 2 to 1 Polyolefin B2 Data Sheet Send E-Mail

M23053/1 R10 R10 Data Sheet Send E-Mail
M23053/4 Class I W5DL W5DL Data Sheet Send E-Mail
M23053/4 Class II O2B2 O2B2 Data Sheet Send E-Mail
M23053/4 Class III W3B2 W3B2 Data Sheet Send E-Mail
M23053/8 K K Data Sheet Send E-Mail
M23053/13 FE3 FE3 Data Sheet Send E-Mail
M23053/12 Send E-Mail
M23053/16 R120 R120 Data Sheet Send E-Mail
M23053/18 Class I K2 K2 Data Sheet Send E-Mail
M23053/18 Class III K3 K3 Data Sheet Send E-Mail

Contact us for reliable tubing and sleeving products.
